Effective length 9.5″ 10.5″ 12″
Mounting distance, mm 205.5 236.1 283.8
Pivot to spindle distance, mm 223 251.6 295.6
Overhang, mm 17 15.4 13.4
Offset angle, deg 22.9 20.7 17.6
Effective mass See details of each armwand material

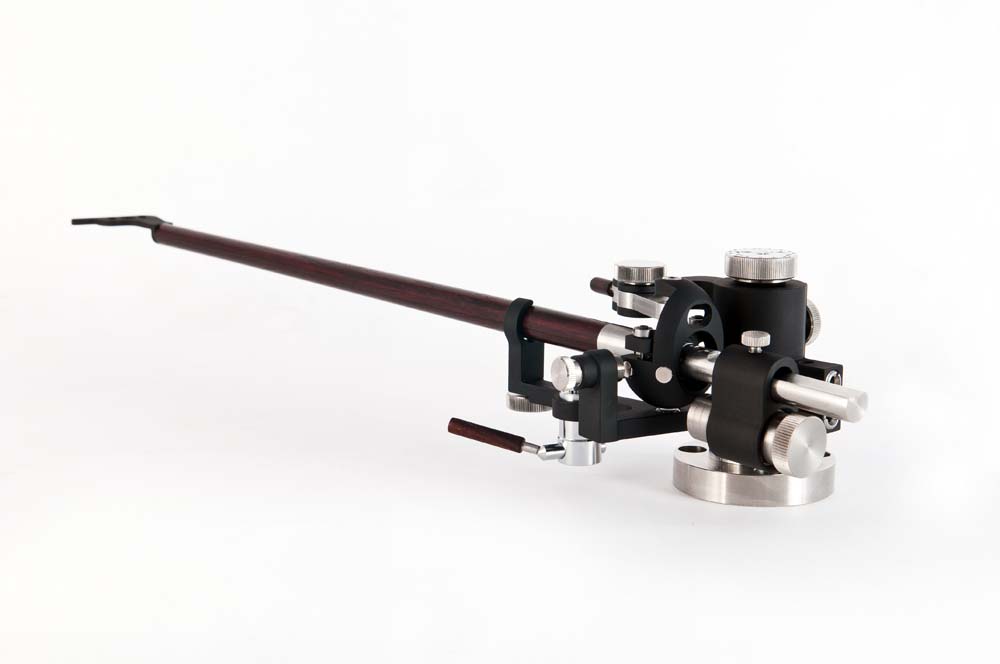

Reed 3P, among other features, like fine VTA adjustment on-the-fly, also has a unique possibility of adjusting azimuth while playing a record. An exciting thing about the azimuth adjuster is that during the adjustment process the cartridge “swings” around the needle tip, hence keeping all other tonearm parameters intact (you can see how it works by watching a short video).
Magnetic antiskating and some other features, used in Reed 3P, were developed in our Reed Mag prototype model*, which made its first appearance in Analog Forum 2011 Krefeld, Germany.

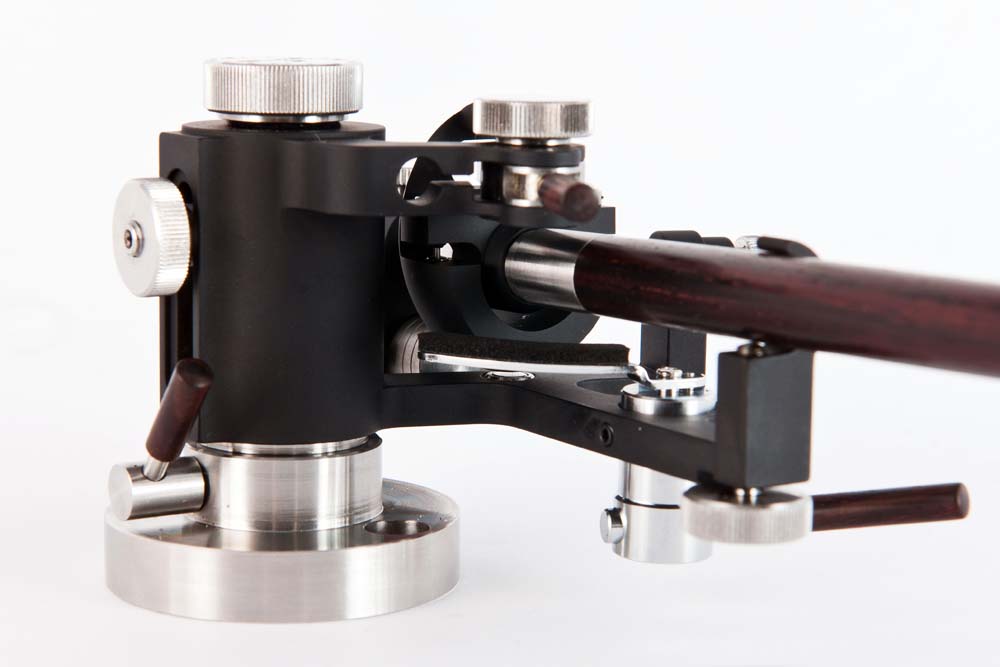

Another 3Ps innovation is its bearing system. Although tonearm bearing system can be considered as gimbal, it acts like unipivot one. However, major difference from unipivot system is that instead of a single pivot three pivots and both vertical and horizontal axis’ magnetic stabilizers are used. Such bearing system is as rigid as gimbal, but its friction coefficient is as low as in unipivot.
