Major features
Bearing Mechanism
Horizontal: TechDAS Air Bearing Float System
Vertical: Tungsten Pivot + Ceramic Ball Bearing
Armtube Hybrid 2 layer structure
Outer: Magnesium alloy with DLC coating
Inner : CFRP (Carbon Fiber Reinforced Plastics)
Tonearm Lifter TechDAS Vacuum Force Lift System
Tracking Force Adjustment
Spring pressured ynamic balanced
Arm Mount
TechDAS H elicoid H eight A djustable Mount
External Air Supply Unit 1 pump system for intake/exhaust
Available Length 10 inch and 12 inch
Specification (10inch) Pivot to Spindle:
230mm Effective Length: 248mm
Overhang: 18mm
Offset Angle: 23 degrees
Inner Offset: 96.9mm
Inner Null Point: 68.9mm
Outer Null Point: 124.9mm
Maximum Error: 1.4 degrees
Maximum Distortion: 0.95 %
Average RMS distortion: 0.39%
Weight: 2.3 kg
DIN 5pin Output connector (phono cables not included)

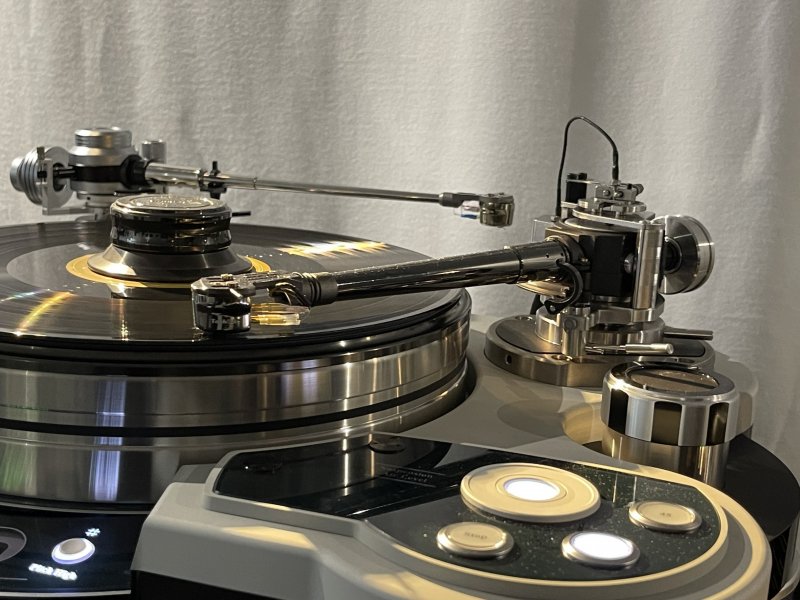

TechDAS Air Force 10 Tonearm
TechDAS Air Force 10 tonearm incorporates a culmination of our innovative vacuum hold down and air bearing technologies, which were originally developed for TechDAS Air Force turntables. Additionally, it draws upon our extensive expertise in precision machining, particularly with titanium and tungsten materials.
After dedicating nearly three years to the development and design of this new tonearm, we are thrilled to present a product that features an exceptionally smooth and precise motion, thanks to the advanced air bearing technologies. This breakthrough enables the faithful reproduction of even the most subtle details
embedded within the grooves of your vinyl records, immersing you in an unparalleled "you are there" feeling and experience. Furthermore, the tonearm's revolutionary arm tube and main body benefit from the exceptional damping characteristics of the exotic materials and finishes used in their construction. This
damping capability ensures ultimate silence and faithfully conveys every piece of information captured by the cartridge, delivering an audio experience of unmatched quality.
