Nominal output power 200 watts RMS (220 watts peak) @ 8 ohms 300 watts RMS (330 watts peak) @ 4 ohms< 325 watts RMS (375 watts peak) @ 2 ohms (software limited)
Line Gain 0 dB nominal, up to +12dB
Power Stage Gain 26dB@8ohms
Analog Inputs 1xZeel50-ohmBNC,3xRCA line< 1 x Aux 3.5 mm front panel jack
Digital Inputs 1 x RJ45 Network 1 x USB 2 x SPDIF (RCA 75 ohms) 2 x TOS Link
Analog Output 1 x Headphone 6.35 mm front panel jack
Frequency response 7Hz –170kHz, +0,-6 dB 20Hz– 20kHz, +0,-0.5 dB
Rise time < 0.8 μs
Slew rate > 100 V/μs, peak-peak
DC output voltage < ± 15 mV max
Total Harmonic Distortion (THD) < 1%from7Hzto77kHzz
Temporal Distortion None, at any level and load, as specified above
Crosstal < 80dB@1kHz
Signal to noise ratio > 105 dB (A) @ nominal power
Power consumption 2 watts Standby, 40 watts @ idle, 900 watts @ maximum output power
Size in mm 440 x 350 x 130 (WxDxH)
Net weight 16 kg

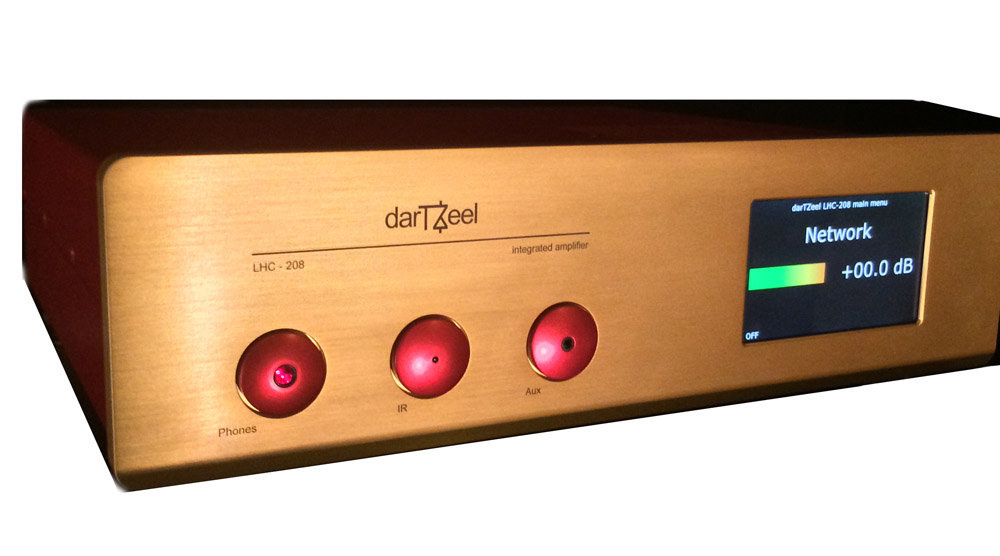

DarTZeel introduced their new LHC-208 Integrated Streaming Amplifier that combines a 200wpc integrated amp with a network player. There are 4 analog and 6 digital inputs as well as a headphone amp and integrated TFT touch screen. The LHC-208 can handle up to 24/384 PCM and 2x DSD data
DarTZeel LHC-208 integrated streaming amplifier darTZeel is proud introducing its first integrated line amplifier with full digital streaming capabilities. Powerful, easy to use, extremely versatile, the darTZee LHC-208 fills the gap between conventional DACs and integrated amplifiers available so far. Key features include: • Newly designed TFT tactile screen for intuitive, user-friendly operation. • 4 analog inputs. • 6 digital inputs. • Up to 352.8/24 and 2 x DSD< • Unique darTZeel Smart Clock system. • Special darTZeel cooling control. • Full HT bypass function. • Remote via computer or tablet. • Optional infrared remote control. • Headroom for additional features. • Full aluminium chassis. With its innovative design, darTZeel breaks the musical frontier of dematerialized music. Whatever the source format, the LHC-208 will treat, decode and play digital files as if they were purely analog.
