Vacuum tubes
2 x 6922
Rated power
85W / channel at 8 ohms
THD less than
0,05 % at all levels
Power bandwidth
20 Hz 20 kHz 0,2 dB
Frequency response
10 Hz 100 kHz 0,5 dB
Input sensitivity
230 mV for rated power
Input impedance
39 K ohms
S/N ratio (IHF-A curve)
More than 95 dB
Power consumption
400 W
Nominal mains voltage
115V or 230V
factory set for destination country only
Mains voltage range
12 %
Dimensions (mm)
430 (W) 110 (H) 390 (D))
Weight
15 kg

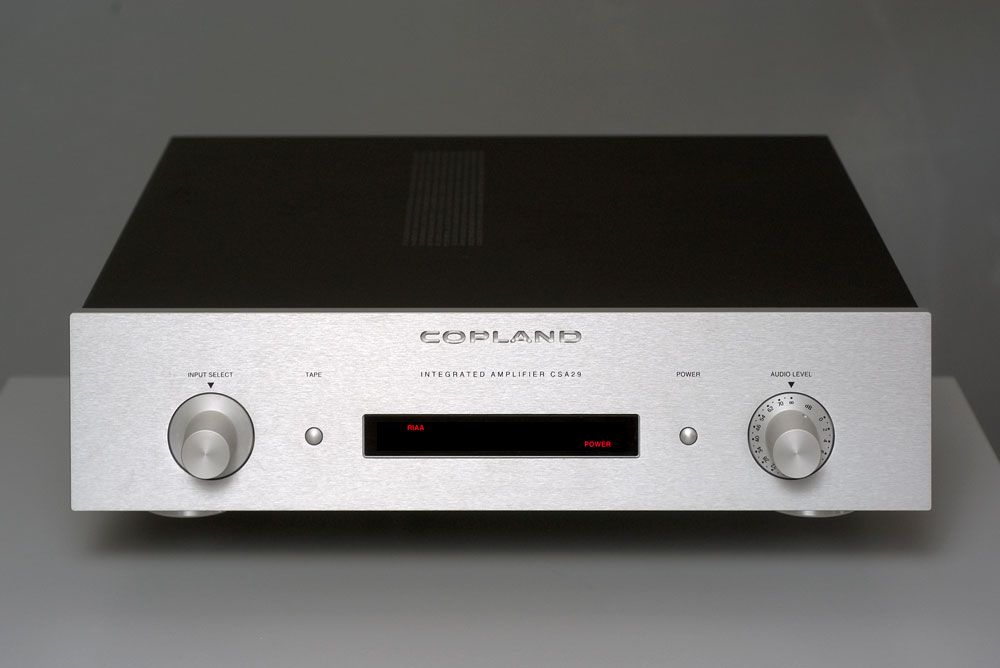

Intergrated Amplifier (85w Stereo)
The integrated amplifier CSA29 combines the benefits of both valves and transistor amplification using the synergic design concept that has made Copland hybrid amplifiers widely acclaimed.
The amplifier uses two valves in the input differential stage, allowing the notably smooth and transparent properties of the valves to blend with the power and dynamics of the transistor electronics. The amplifier delivers 2x85 watts continuous power into 8 ohm. The massive 600W AC transformer and large power supply ensures that the amplifier has more than sufficient drive for a wide range of speakers.
For the vinyl enthusiast we have designed a plug-in phono module, which can be added at your dealer as an optional extra. Employing only discrete components in an active RIAA correction circuitry with low noise input fet-transistors, this is an outstanding phono stage that will provide even more nuances from your treasured vinyl recordings.
The system remote supplied will also control the Copland CDA823 CD player.
